QuelFire QuelStop Fire Batt

QuelStop Fire Batt is used to maintain the fire integrity of compartment walls or floors, typically where oversized holes have been formed for services. A single or double batt may be required depending on a number of factors and it can also be fitted as a pattress fit (or face fit) too.

QuelStop Fire Batt is always installed in conjunction with QuelStop Intumescent Acrylic Sealant which is applied to all cuts, joints and exposed edges.

Where combustible, non-combustible services and insulated services penetrate the QuelStop Fire Batt seal the following additional products may be required:

QuelCoil Intuwrap

QWR Fire Collar

QRS Fire Sleeve

QuelStop HPE Graphite Sealant

QuelStop Intumescent Acrylic Sealant

QIF Insulated Fire Sleeve

QI Intufoam

Features & Benefits

• Up to 2 hour fire rating
• Suitable for use in flexible walls, rigid walls and floors

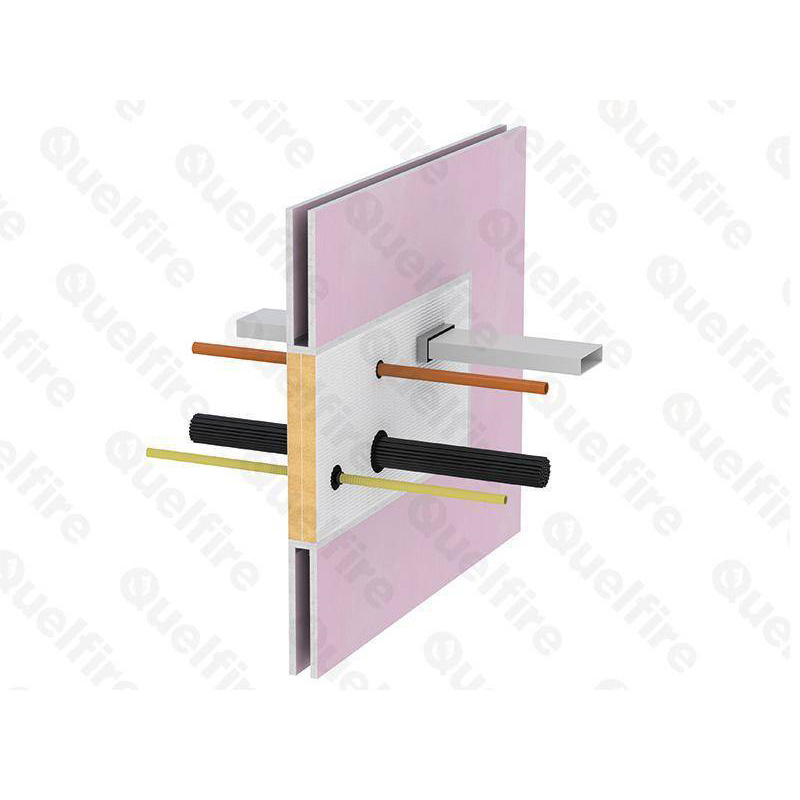

• Suitable for use around cables, cable bunches, cable trays, cable ladders and non-combustible pipes

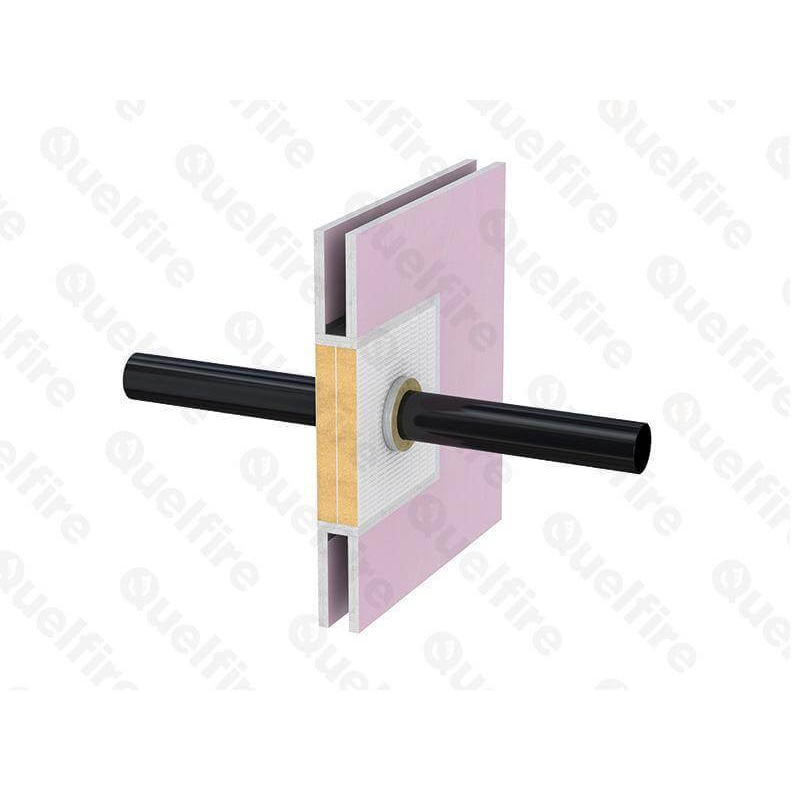

• Also suitable for use around plastic pipes and insulated non-combustible pipes with the addition of other Quelfire products
• Can be used as a blank seal as a head of wall detail
• Can be installed into both lined and unlined apertures in partitions walls
• Can be installed as a single or double batt seal
• Can be pattress fitted / face fixed to walls
• Tested with plasterboard ceilings and steel composite profile decks
• Can be used in conjunction with Intufoam to allow for deflection head movement

Product code : 35ZQB
